Swellpro Thermal Camera for Splash Drone 4 CG3-T
GC3-T waterproof 3-axis gimbal thermal camera combines both a high resolution thermal infrared camera and a full HD low-light camera with a dimmable LED flashlight, which can provide both infrared and visible light imaging simultaneously.
Use the thermal imaging to identify the object of interest, then quickly switch to the low-light mode to better identify the object with more color details.

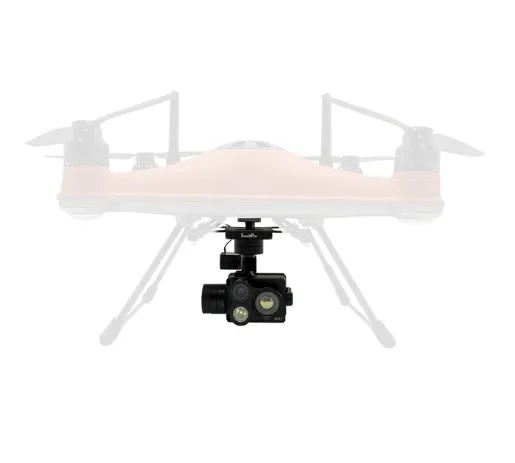

The integration of GC3-T with SplashDrone 4 empowers lots of industries to accomplish their missions smarter and faster with far less risk and cost.Sleek design and portability
The thermal infrared camera features high resolution (640 x 512) and high sensitivity (≤ 50mk@f/1.0) infrared thermal images. It can detect temperature ranging from -20℃ to 150℃ / -4℉ to 932℉ with an accuracy of ±3℃ in real time.
The low-light camera can capture full HD imaging in the dark environment when the regular camera cannot return any images. The dimmable LED flashlight can still maintain the vision in total darkness. With the low light camera, whenever you find the object of interest using the infrared thermal camera, you can always switch back to give a visual confirm of the object. -
- 1 x Swellpro Thermal Camera for Splash Drone 4 CG3-T
-
Waterproof rating:
IP67
Weight:
430g
Weight:
26.5 lbs.
Size:
134.5*134.5*117 mm
Memory Card:
Micro SD card: supports up to 128GB of capacity, write speeds ≥ 40 MB/s, recommend using Class 10 or above, or with UHS-1 rating.
Working Temperature:
-10°C - 40°C

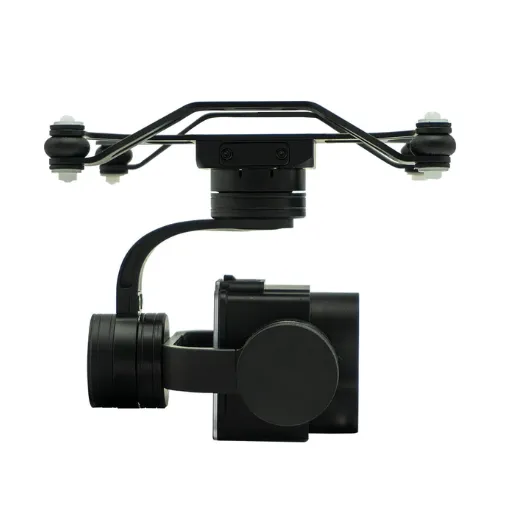

GIMBAL
Stabilization:
3-axis (tilt, pan, roll)
Controllable range:
Tilt: -90° to 0°
Max speed control:
Tilt: 60 °/s
THERMAL CAMERA:
Thermal Imager:
Uncooled VOx Microbolometer
Sensor Resolution:
640 x 512 @50FPS
Lens:
Focal length: 19mm
Aperture: f/1.0
FOV: 22°H x 18°V
IFOV: 0.63 mrad
Pixel Pitch: 12 μm
Spectral Band: 8~14 μm
Sensitivity (NETD):
≤50mK @25℃, f/1.0 (≤40mK Configurable)
Scene Range:
-20℃ to 150℃ (± 3℃)
Anti-flicker:
Auto, 50Hz, 60Hz
Photo format:
JPEG
Video format:
MP4，MOV
LOW LIGHT CAMERA
Sensors: 1/2" 2M Starlight CMOS
Lens: FOV: 92.6°
Burst mode: 3/5/10 shoots
Video resolution: FHD: 1920*1080@50fps | HD: 1280*720@50fps
Anti-flicker: Auto, 50Hz, 60Hz
Max data stream: 64 Mbps
Photo format: JPEG
Video format: MP4，MOV
